1 Stage 650Nm Right Angle Gear Reducer ISO9001
Product Details:
| Place of Origin: | China |
| Brand Name: | Wanshsin |
| Certification: | ISO9001, CCC, CE |
| Model Number: | WADR090010P1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Package |
| Delivery Time: | 4-8 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10,000 Pieces per Month |
|
Detail Information |
|||
| Output Torque: | 40-650Nm | Maximum Input Speed: | 10000rpm |
|---|---|---|---|
| Output Speed: | 15-2500rpm | Gearing Arrangement: | Helical |
| Size: | 064, 090, 110, 140 | Precision: | P1, P2, P3 |
| Life Span: | 20000 Working Hours | Efficiency: | ≥95% For 1 Stage Gearbox, ≥92% For 2 Stages |
| High Light: | ISO9001 650Nm Right Angle Gear Reducer,ISO9001 Right Angle Gear Reducer,650Nm Right Angle Planetary Gearbox |
||
Product Description

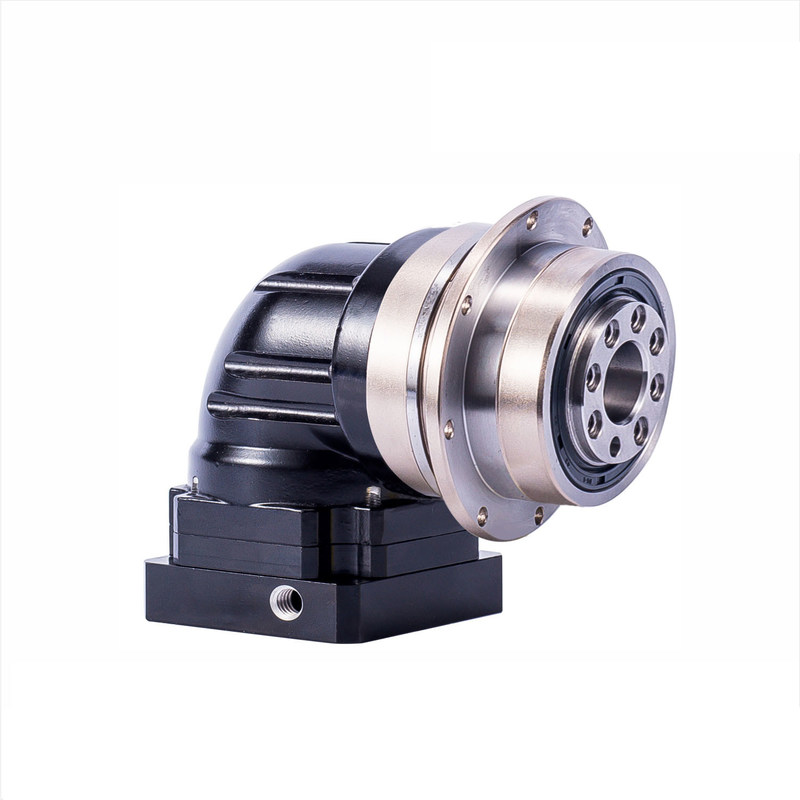

WADR Series Right Angle Planetary Gearbox
High precision planetary gearbox adopts helical gear design. Its mesh between gears is much more convenient than previous spur gear. Noise is reduced, backlash is small, especially show excellent performance of high precision servo motor when low ripple rotate. No need for maintenance and easy assembly. There are comprehensive ratios for your selection. We Wanshsin can get more ratios with different mix.
PRODUCT FEATURESS
- Planetary boom and output shaft are intergrated structure designed to ensure maximum torsional rigidity.
- Planetary wheel with full needle design, increase the contact area to improve the rigidity and output torque.
- The gears are carburized and quenched to the HRC62 with low carbon steel surface for optimum wear and impact toughness.
- Gears refer to foreign imported software-assisted design to obtain the best tooth shape to reduce noise.
- The input terminal is connected to the motor shaft in a double-tight manner to obtain the maximum clamping force and zero backlash power transmission.
- Adopt spiral bevel gear design, allow high output torque, more than 30％ higher than straight bevel gear.
- High tolerance input speed, more than 8 times higher than straight bevel gear input.
- The meshing tooth imprint of spiral bevel gear has been optimized by optimum design, and the contact tooth surface load is uniform, and long running life.
- Cochlear bevel gears are meshed by optimum motion error analysis and strict process control to ensure high precision running backlash.
| Size | WAB | WAD | WVRB | WAE | WPF | WPL | WR |
| Ratio | 3~200 | 3~200 | 3~200 | 3~200 | 3~200 | 3~200 | 1, 2, 3, 5 |
| Maximum input speed | 10000RPM | 10000RPM | 10000RPM | 10000RPM | 10000RPM | 10000RPM | 2000RPM |
| Output torque | 14~2000Nm | 14~2000Nm | 14~2000Nm | 14~2000Nm | 12~550Nm | 12~550Nm | 15~60Nm |
| Precision backlash | P1/P2/P3 | P0/P1/P2 | P1/P2/P3 | P1/P2/P3 | P1/P2/P3 | P1/P2/P3 | P1/P2/P3 |
FAQ
Q: What should I provide when I choose gearbox/speed reducer?
A: The best way is to provide the motor drawing with parameter. Our engineer will check and recommend the most suitable gearbox model for your reference. Or you can also provide below specification as well:
1) Type, model and torque.
2) Ratio or output speed
3) Working condition and connection method
4) Quality and installed machine name
5) Input mode and input speed
6) Motor brand model or flange and motor shaft size
Q: Are you a motor manufacturer?
A: Yes, we are motor manufacturer. we develop and produce both the motors and gear reducers all by our own factory.
Q: How long does it take to finish my order?
A: Normally your order could be delivery in 7-15 days, some hot sales products could be fast delivered in 1 week. It depends on the quantity.
Q: Can I get a sample first?
A: Sure, we are honored to offer you sample for test before placing a formal order.
